The CARSON-MODEL SPORT FY10 Truggy is a fun and action racer with a super-powerful 11T brushless motor, which rapidly accelerates the model to its top speed of about 55 km/h. 4WD drive and Truggy tyres with good grip provide outstanding off-road performance. Top features such as adjustable oil pressure shock absorbers, ball bearings, blue anodised aluminium tuning parts and a robust 9 kg steering servo make the FY10 stand out from the rest. The interference-free and lightweight 2.4 GHz remote control fits perfectly in your hand. All-inclusive: The FY10 Truggy 100% RTR comes with transmitter batteries, drive battery and plug-in charger.
Scope of delivery:

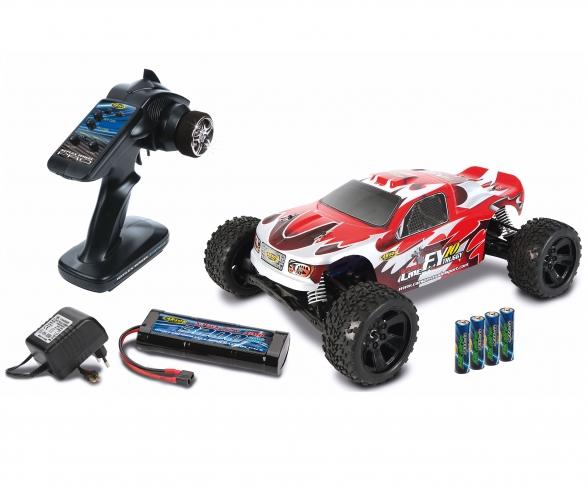

Model assembled ready to drive with 2.4 GHz remote control system, NiMH drive battery 3200 mAh with charger and 4 AA transmitter batteries
Technical details
• Tray chassis with aluminium top deck
• Scale 1:10
• 2S brushless controller with fan, T-plug connector system,
operating voltage up to 7.4 V (35 A continuous current, 190 A for short periods)

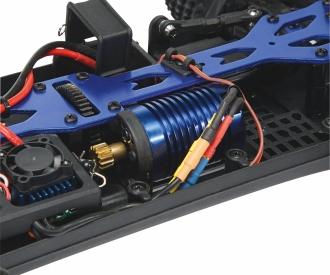

• 11T brushless motor 3570 kV (510 W) with aluminium cooling fins
• Four-wheel drive (4WD)
• Robust, pre-decorated polycarbonate body
• 9 kg steering servo with metal gearbox
• Assembled and adjusted ready to drive
• All wheels ball bearing mounted
• Adjustable front toe and front/rear camber
• Adjustable oil pressure shock absorbers
• NiMH drive battery 7.2 V/3200 mAh (T-Plug connector system)
• Plug-in charger 500 mA
• Transmitter: 2.4 GHz Reflex Wheel Pro remote control system,
operating voltage 4.8-6 V, operating voltage indication, charging socket
Technical data
Length 408 mm
Width 310 mm
Height 170 mm
Wheelbase 310 mm
Ground clearance 33 mm
Maximum speed 65 km / h
Tire diameter 112 mm
Tire width 50 mm
Weight 2250 g with battery
Product details
- Adjustable chassis
- Ready-to-run
- 2S brushless system
- 2.4 GHz Reflex Wheel Pro RC-system
- 7.2 V/3200 mAh drive battery
- 9 kg steering servo
- Ball bearing mounted
- Durable decorated bodywork
- Oil-lled shock absorbers
- Special HIGH-Grip pin tyres for maximum grip on all terrain.

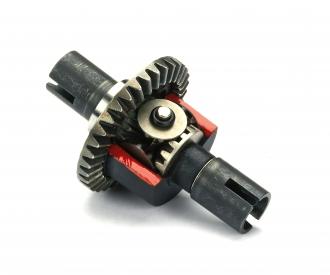

- Two SPIDER-differentials pass the power of the brushless-engine constantly to all 4 wheels.
- The made of extremly durable plastic manufactured DOUPLE-WING spoiler provides maximum grip.
- The powerful 11T Brushlesscombo (3750 KV) can be operated with a 2S LiPo battery.
