Reflex Wheel X1, RC transmitter, 2.4GHz 2-channel

Reflex Wheel X1, RC transmitter, 2.4GHz 2-channel

(0)
  • Article number: 500500105
  • Age recommendation: from 14 years

€47.99

Quantity:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Add to wish list
Please wait
Added to wish list
Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

!

This item can only be delivered to the following countries:
All EU countries, United Kingdom, Switzerland, Norway, Iceland, Liechtenstein

Product information

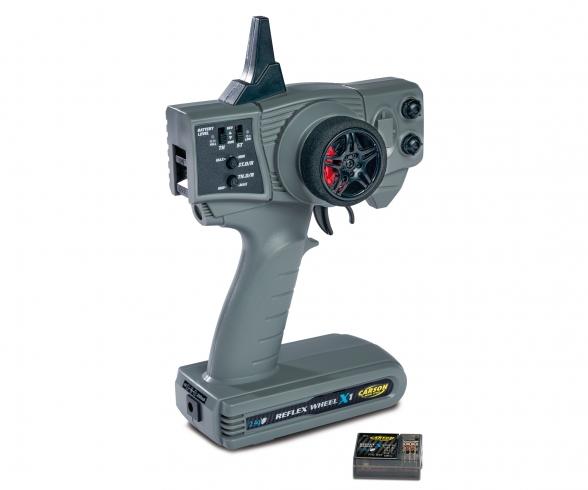

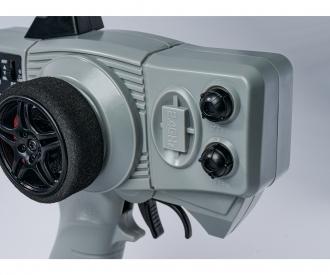

The Reflex Wheel X1 brings 2.4GHz radio control and a classic pistol-grip layout into one focused setup for RC driving. A side steering wheel, trigger throttle and 2 fully proportional channels give fine control over steering and speed, whether the model is lining up for a clean straight or working through tighter corners. At the technical level, the transmitter runs on 4.8 to 6V and pairs with a compact 4-channel mini-receiver measuring 36 x 25 x 15 mm. The receiver power supply supports up to 11V without a BEC, and the Uni connector system J/R broadens compatibility across common hobby installations. A charging socket with positive pole inside is built into the transmitter, and an LED battery status display keeps the power level visible during use. The set is also Tamiya kit compatible, which makes it a practical radio option for many workshop and upgrade projects. Included are a 2-channel 2.4GHz transmitter and a 4-channel 2.4GHz receiver. 14 years marks the recommended age. 4 AA batteries are required separately, so the radio can move straight into bench setup, model installation and the first tuning session once the power supply is in place.



Warning! Not suitable for children under 14 years.


Product details

Features:
1. Two infinitely variable fully proportional channels
2. Servo reverse for both channels (reversal of direction of travel)
3. Trimming function for gas and steering
4. Dual rate for both channels (travel limiting of the servos)
5. Programmable failsafe
6. Tamiya kit compatible

Technical data:
• Operating voltage of the transmitter 4.8 – 6V
• Two infinitely variable fully proportional channels
• Servo reverse for both channels (reversal of direction of travel)
• Trimming function for gas and steering
• Dual rate for both channels (travel limiting of the servos)
• Power supply of the receiver up to 11V (without a BEC)
• Built-in failsafe
• Uni connector system J/R
• Charging socket (positive pole inside)
• Battery status display via LED
• 4-channel mini-receiver 36x25x15 mm

DOC EU (PDF/163 KB)
5
0
4
0
3
0
2
0
1
0
Write a review

Martin

25.02.2026

Guten Tag!

Um bzw. auf wie viele % kann ich den Servo Weg mit der Dual Rate Funktion bei der X1 reduzieren?

Vielen Dank, beste Grüße,
Martin Bürscher Show translation

Logo Carson

Service Team

Hallo Martin,

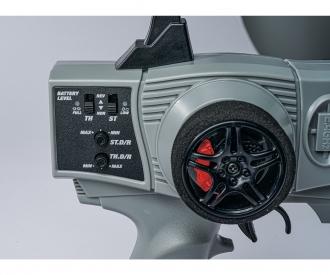

bei der Reflex Wheel X1 arbeiten die Dual-Rate-Regler (ST D/R und TH D/R) stufenlos. Du kannst den Servoweg damit von nahezu 0 % (fast kein Ausschlag) bis 100 % des vollen Servowegs reduzieren – es gibt aber keine fest kalibrierte Prozent-Skala, die Einstellung erfolgt nach Gefühl bzw. Probefahrt.

Viele Grüße!
