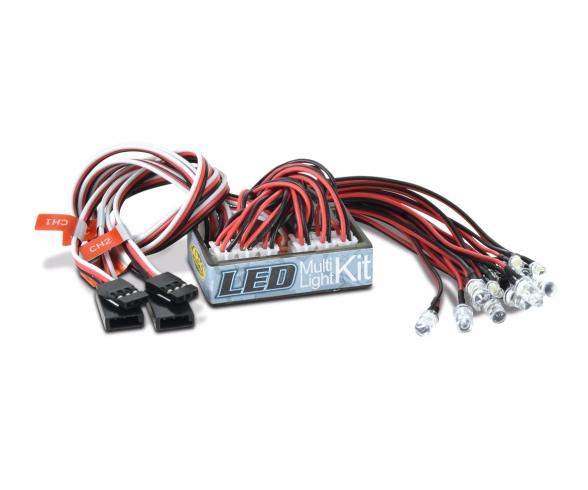

1:14 LED Light-Set TRUCK, light kit

The 1:14 LED Light-Set TRUCK brings working vehicle-style lighting to model truck builds with a compact control unit and multiple LED outputs. Front indicators, rear indicators, front lights, rear lights, brake lights and reverse lights can be simulated through the module, so the model shows different light functions instead of a single constant glow. The unit operates on 4-6 V DC and draws a maximum of 210 mA. Its FUTABA plug system is compatible with TAMIYA models, and the connection layout links the module with receiver channels CH1 and CH2 as well as the steering servo and speed controller. The lighting setup uses 3 mm LEDs for the front and rear indicators plus the reverse lights, while the front lights, rear lights and brake lights use 5 mm LEDs. A demo mode starts when the transmitter is switched off, allowing the lighting functions to be shown without active driving input. With dimensions of 42 x 32 x 13 mm and a weight of 44 g, the module fits neatly into many 1:14 truck installations where electronics space is limited. The set suits hobby builds that aim for more detailed road-truck behaviour, whether the model is being wired for workshop installation, display preparation or running sessions on the course.



Warning! Not suitable for children under 14 years.
