Universal Light Module LBS15, RC module, 15 functions

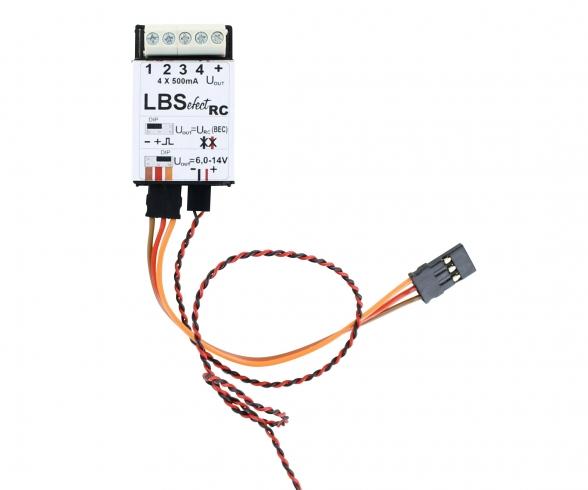

The Universal Light Module LBS15 adds programmable lighting control to RC models through 4 outputs rated at 500 mA each and a selectable output voltage setup. Terminals 1, 2, 3 and 4 work with a shared positive connection, creating a tidy basis for separate light circuits in body shells, scale trucks or other model builds where multiple effects need clear routing. DIP configuration allows the output to run either at UOUT=URC BEC or across 6.0-14 V, so the module can be matched to different onboard power layouts. The 3-wire servo connection uses orange for signal, red for positive and brown for negative, and the module connects directly to a free receiver channel. The housing markings show polarity and channel assignment at a glance, which helps when integrating the board into tighter chassis spaces. With 15 functions available, the module supports more than a single fixed pattern and gives lighting setups a broader operating range inside one compact control unit. In use, the module suits RC cars, trucks and other model applications that benefit from switched or effect-based lighting. It fits especially well into custom builds where separate front, rear or auxiliary light circuits need organised control through the receiver system.
