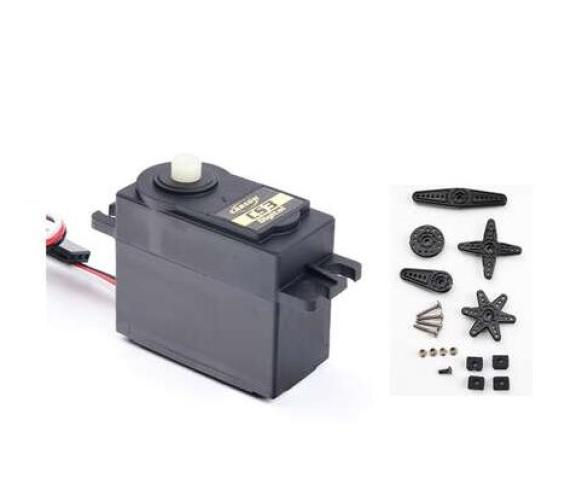

Servo CS-3DS, standard servo, waterproof

The Servo CS-3DS brings standard-size dimensions, JR connection and waterproof construction into one control component for RC model builds that need a compact, clearly specified servo. With a voltage range of 4.8-6 V, it suits common receiver power setups while keeping the installation focused on a familiar standard format. Its core motor is paired with plastic gears and a 25-tooth output gearing, giving the linkage a defined interface for compatible servo horns and steering assemblies. The listed performance figures of 5.6 kg/cm torque at 6 V and 0.12 sec per 60° at 6 V place the emphasis on quick, controlled movement rather than vague performance claims. Ball bearings are not fitted, and the specification states this plainly for builders comparing component layouts and running requirements. A servo horn set is included, so the control arm hardware is already part of the package. In a touring car, buggy, crawler or boat project, the 40.5 x 20.2 x 37.15 mm housing and 45.5 g weight give concrete reference points for installation planning before the linkage is connected. The waterproof design also suits running sessions where spray, puddles or damp ground are part of the conditions rather than an exception.
