Reflex Wheel Start, radio system, 2.4 GHz

Reflex Wheel Start, radio system, 2.4 GHz

(0)
  • Article number: 500500109
  • Age recommendation: from 14 years
Find a dealer

available in stores

Product information

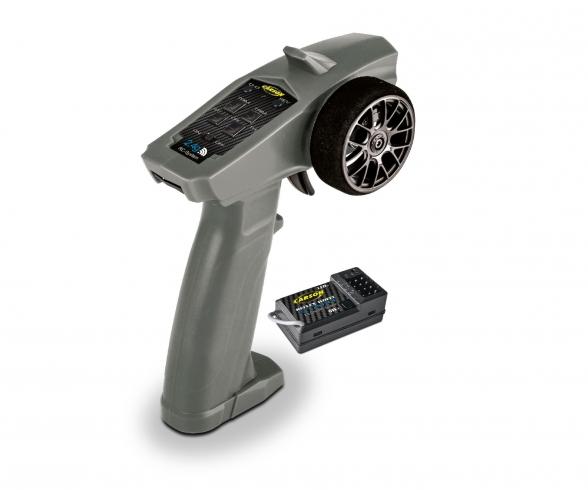

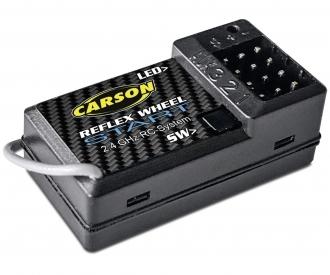

The Reflex Wheel Start radio system brings 2.4 GHz control, a compact 3-channel layout and a classic wheel transmitter format into one setup for RC vehicle use. The grey handheld transmitter works with a matching 3-channel mini-receiver, creating a focused control package for steering, throttle and an additional channel. Its fully proportional channels allow gradual input instead of simple on-off commands, so steering corrections and throttle changes can be fed in with more precision. Servo reverse changes the direction of the channel output when a steering or throttle function needs to be matched to the installed electronics. Separate trim settings for steering and throttle help centre the response, while dual rate on both channels limits servo travel for a more controlled setup range. The transmitter operates on 4.8 to 6 V, and the receiver can be powered with up to 11 V without BEC. The Uni connector system supports Futaba and Graupner-J/R compatibility. Included are a 3-channel 2.4 GHz transmitter, a 3-channel mini-receiver and instructions. The 14 years marking is stated in the product data. This radio set suits hobby workbench setups, replacement installations and fresh RC vehicle builds where compact receiver dimensions and direct wheel-style control are part of the plan.



Warning! Not suitable for children under 14 years.


Product details

Features:
1. Two gradually adjustable, fully-proportional channels
2. Servo reverse (reverses the direction of travel) and trim function
3. Trimming function for gas and steering
4. Dual rate for both channels (travel limiting of the servos)
5. Battery status display via LED
6. Failsafe

Technical data:
• Operating voltage of the transmitter 4.8 – 6V
• powering of receiver (without BEC) 11 V possible
• Uni connector system Futaba/Graupner-J/R

Dennis

02.03.2024

Verified purchase

Alles bestens

Schnelle Lieferung und die Fernbedinjng ist auch sehr gut. Show translation

0

Anonymous

24.02.2024

Verified purchase

Handliche kleine 3-Kanal Fernsteuerung

Eine gute, zuverlässege Fernsteuerung mit Pistolengriff und eine. 3. Kanal zu einem sehr guten Preis. Show translation

0

Alexander

21.02.2024

Verified purchase

Fernsteuerung

Ich nutze nur Fernsteuerungen mit Stick, doch ich wollte den Wechsel auf einen“Pistolengriff“ einmal ausprobieren. Die Qualität des Plastiks ist einfach gehalten, aber nicht schlecht. Der Griff passt gut in meine Hand, der Widerstand des Drehrades ist angenehm, das Moosgummi fühlt sich gut an. Alles in Allem für mich als Einsteiger eine Tolle Sache Show translation

0

5
2
4
1
3
0
2
0
1
0
Write a review

Max

20.04.2026

Bonjour, cette radiocommande est elle compatible avec une X8E specter? Merci Show translation

Logo Carson

Service Team

Hallo Max,

die Reflex Wheel Start (500500109) ist nicht direkt mit dem serienmäßigen X8E‑Specter‑Empfänger kompatibel, sie kann also nicht einfach an dessen Empfänger „angebunden“ werden. Du kannst sie aber verwenden, wenn Du den mitgelieferten Reflex‑Wheel‑Start‑Empfänger im X8E einbaust und Servo (Lenkung) und Fahrregler dort einsteckst. Wenn Du Dir beim Einbau unsicher bist, kontaktiere uns unter https://service.simba-dickie.com/fr/home/carson/.

Viele Grüße!

Micha

12.01.2026

Hallo, guten Tag und ein frohes neues Jahr!
Ich möchte gemeinsam mit meinem Sohn in das Hobby (wieder-)einsteigen, und suche einen Drehradsender, der sich bestmöglich für kleine Kinderhände eignet.
Ist die Reflex Wheel Start (oder die Reflex Wheel XS) dafür konzipiert?

Vielen Dank
MfG Show translation

Logo Carson

Service Team

Hallo Micha, Dir auch ein frohes neues Jahr! :)

Die Reflex Wheel Start wie auch die Reflex Wheel XS sind zwar einsteigerfreundlich, aber nicht speziell für kleine Kinderhände entwickelt und jeweils ab 14 Jahren empfohlen.
Für jüngere Kinder ist die Bedienung meist nur gut mit Deiner Unterstützung sinnvoll. Hierzu empfehlen wir wenn eine der Reflex Wheel Start Anlagen.

Viele Grüße!

Henry

04.07.2024

Können mit der Funke mehrere Empfänger betrieben werden? Natürlich immer einzeln. Show translation

Logo Carson

Service Team

Hallo Henry, nein, nur der Empfänger 500500102.

Viele Grüße!
