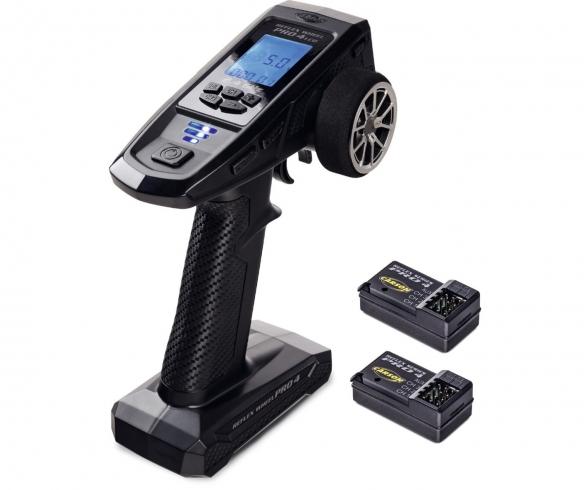

Reflex Wheel Pro 4, RC transmitter, 2.4 GHz

Reflex Wheel Pro 4, RC transmitter, 2.4 GHz

(2)
  • Article number: 500500113
  • Age recommendation: from 14 years

€69.99

Quantity:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Add to wish list
Please wait
Added to wish list
Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

The Reflex Wheel Pro 4 brings 2.4 GHz control, LCD setup access and a wheel-style layout into one radio system built for RC model use. With 4 channels, 2 included mini receivers and a transmitter operating voltage of 3.6-4.5 V, it covers steering, throttle and added switching functions in a compact setup for multiple vehicles. Channels 1 and 2 work as fully proportional controls, giving fine input over steering and throttle instead of fixed steps. Channel 3 can be programmed as a switch or button function for a servo, while channel 4 uses a 3-level switch for added onboard functions. Servo reverse for channels 1 and 2 changes direction of travel when a model layout requires it, and the receiver power supply range of 3.5-10 V supports installation in different RC configurations without a BEC. The ball-bearing control unit supports precise steering input, while trim, dual rate, expo and ABS functions allow response to be adjusted to the model and surface. The LCD screen and LED battery status display keep key settings and charge information visible during setup and running. A failsafe function adds a concrete control feature for signal loss situations, and 15-model memory stores settings for different vehicles. The Uni connector system for Futaba and Graupner-J/R broadens compatibility across existing RC equipment. 4 AA batteries are required separately.



Warning! Not suitable for children under 14 years.


Product details

Technical Details:
• Operating voltage of the transmitter 3.6-4.5 V
• Two infinitely variable fully proportional channels
• reverse for both channels (reversal of direction of travel)
• Trimming function for gas and
• Dual rate for both channels (travel limiting of the servos)
• Power supply of the receiver 3,5-10V (without a BEC)
• Channel 3 programmable as switch/button function (servo)
• Channel 4: 3 level switch
• Expo and ABS Function
• 15 Modelmemory
• Uni connector system Futaba/ Graupner-J/R
• Battery status display via LED

Features:
1. 4-channel remote control, including 2 gradually
adjustable and fully proportional channels and 2 switchable channels
2. Ball-bearing control unit for precise steering
3. LED battery status indicator
4. Failsafe function
5. Ergonomically designed steering wheel position at an angle of 4°
6. Nano receiver waterproof
7. Carbon structure
8. Servo reverse (reverses direction of travel for channels 1 and 2)
9. Trim function for throttle and steering
10. Dual rate for channels 1 and 2 (limits steering
and reduces the speed)

Compatibility

Anonymous

17.01.2026

Verified purchase

Alles perfekt

Super Wie immer 😃 wen man was bei Carson bestellt. Show translation

0

Juergen

29.08.2025

Verified purchase

Alles prima

Super Ware zum super Preis, was will man mehr. Vielen Dank Show translation

0

5,0

5
2
4
0
3
0
2
0
1
0
Write a review

Andi

08.03.2026

Kann man hier die Throttle Curve einstellen? Show translation

Logo Carson

Service Team

Hallo Andi,

eine echte, mehrstufig programmierbare Throttle‑Curve gibt es bei der Reflex Wheel PRO 4 / PRO 4 LCD nicht.

Du kannst aber über die EXP‑Funktion für Gas (FW/BK) die Kennlinie exponentiell anpassen (‑100 % bis +100 %) und damit das Ansprechverhalten um die Neutralstellung weicher oder aggressiver machen. Eine weitergehende Kurvenprogrammierung ist nicht vorgesehen.

Viele Grüße!

Basti

02.01.2026

Hallo, warum sind die Sender/Empfänger der Serien FS 3K und FS 4K nicht zueinander kompatibel?
Gibt es eine Kompatibilitätsliste?
Viele Grüße Show translation

Logo Carson

Service Team

Hallo Basti, eine genaue und komplette Übersicht gibt es.
Bitte wende Dich dazu direkt an unsere Kollegen aus dem Service unter: https://service.simba-dickie.com/de/home/carson/produktanfrage/

Viele Grüße! :)
