Product information

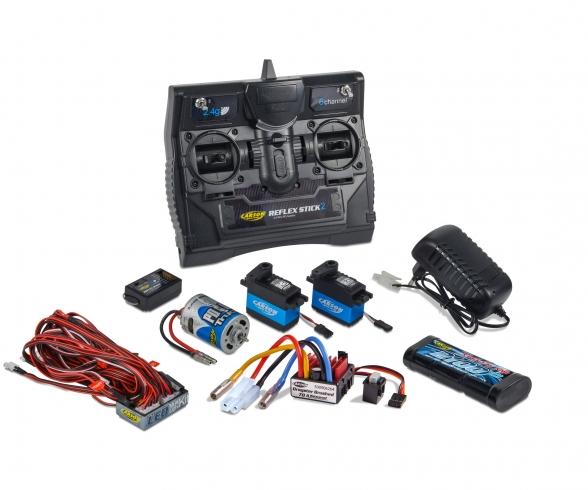

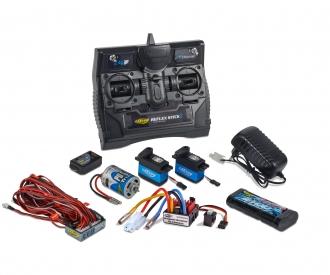

The Reflex Stick Truck-Set 2.4G brings the core electronics for an RC truck into one coordinated package, centered on a 6-channel 2.4 GHz stick transmitter and matched receiver. With 2 servos, a truck control unit, truck motor, LED truck light, a 7.2 V 2100 mAh battery pack and an Expert Charger 1 A, the set covers the main control, drive and lighting functions needed for a model truck layout.
The radio system uses FHSS transmission, a frequency-hopping signal method that supports a steady connection between transmitter and receiver. Servo reverse and trimming are available on all channels, which helps align steering direction, throttle response and added functions to the truck's installation. The transmitter operates on 4.8 to 6 V from 4 AA batteries, and the receiver power supply is also specified at 4.8 to 6 V. A Graupner-J/R plug system is stated for the connections, giving the set a defined interface for compatible RC components.
On the bench, the included electronics suit a fresh truck build as well as a replacement setup for an existing model. Once installed, the combination of radio control, motor drive, steering servos and LED lighting supports realistic truck running with controlled manoeuvres and added light functions during operation.
Product details
Features:
• Operating voltage transmitter 4.8 - 6 V (4 AA batteries)
• 2.4G FHSS-System (Frequenz Hopping Spread Spectrum)
• 2.4G servo reverse (reversal of running direction) and
trimming function for all channels
• power supply to the receiver 4.8 – 6 V
• plug system Graupner-J/R
Compatibility
Downloads
Reviews
FAQ (2)
Was ist der Unterschied bei den Servos?
Service Team
Hallo Florian, 1x 3kg für die Schaltung und 1x 6kg für die Lenkung.
Viele Grüße! :)
Viele Grüße! :)
Can I bind 2 receivers together on this system?
Service Team
Hallo Matt, ja, das geht. :)
Dazu bringst Du beide Empfänger in den Bindmodus und schaltest dann den Sender ein.
Viele Grüße, Dein Online Team
Dazu bringst Du beide Empfänger in den Bindmodus und schaltest dann den Sender ein.
Viele Grüße, Dein Online Team
Sign up for the newsletter here!
Jürgen
30.04.2023
Super Set zum Einbau
Preis Leistung Verhältnis sehr gut. Würde ich jederzeit weiter empfehlen.
