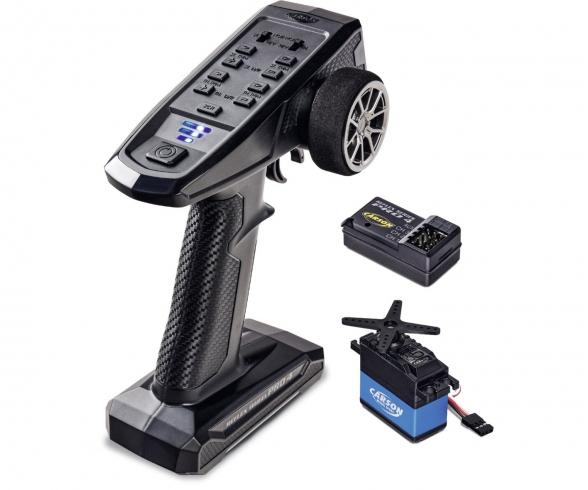

RA 3Ch Reflex Wheel Pro 4, RC radio set, 2.4 GHz

RA 3Ch Reflex Wheel Pro 4, RC radio set, 2.4 GHz

(1)
  • Article number: 500500111
  • Age recommendation: from 14 years

€59.99

Quantity:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Add to wish list
Please wait
Added to wish list
Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

The RA 3Ch Reflex Wheel Pro 4 brings 2.4 GHz control, a 4-channel mini receiver and a 5 kg CS5 servo into one radio set built for RC model driving with direct, adjustable command at the wheel. With a pistol-grip transmitter, side steering wheel and trigger throttle, the layout follows the handling style widely used in ground vehicles and keeps key functions close at hand. Channels 1 and 2 work fully proportionally, so steering and throttle inputs can be fed in smoothly rather than only in fixed steps. Servo reverse for both channels changes the direction of travel response when a model needs the opposite movement, and separate trim for throttle and steering helps straighten running behaviour without mechanical changes. Dual rate on both channels limits servo travel and can reduce speed response, which is useful when matching control sensitivity to different chassis layouts. Channel 3 is programmable as a switch or button function, adding another control option for compatible RC installations. The receiver accepts a power supply up to 6 V without a BEC and uses a Uni connector system for Futaba and Graupner-J/R compatibility. A waterproof nano receiver format suits compact installations, while the LED battery status display gives a clear visual check on transmitter power. The set includes the transmitter, 4-channel mini receiver, 5 kg CS5 servo and instructions. 4 AA batteries are required separately.



Warning! Not suitable for children under 14 years.


Product details

Technical Details:
• Operating voltage of the transmitter 3.6-4.5 V
• Two infinitely variable fully proportional channels
• Servo reverse for both channels (reversal of direction of travel)
• Trimming function for gas and steering
• Dual rate for both channels (travel limiting of the servos)
• Power supply of the receiver up to 6 V (without a BEC)
• Channel 3 programmable as switch/button function (servo)
• Uni connector system Futaba/Graupner-J/R
• Battery status display via LED
• Steering servo: JR-Plug, 5 kg trow force

Features:
1. 3-channel remote control, including 2 gradually adjustable and fully
proportional channels
2. Ball-bearing control unit for precise steering
3. LED battery status indicator
4. Failsafe function
5. Ergonomically designed steering wheel position at an angle of 4°
6. Nano receiver waterproof
7. Carbon structure
8. Servo reverse (reverses direction of travel for channels 1 and 2)
9. Trim function for throttle and steering
10. Dual rate for channels 1 and 2 (limits steering and reduces the speed)

Compatibility

Steven

01.10.2025

Verified purchase

Einfache Handhabung, leicht und gut in der Hand

Überschaubare Einstellungsmöglichkeiten, leicht und liegt gut in der Hand, leider aber auch nicht sehr robust! Show translation

0

4,0

5
0
4
1
3
0
2
0
1
0
Write a review

Michael

27.06.2026

Kann man mit der Fernbedienung die maximale Geschwindigkeit eines Tamiya-Fahrzeugs einstellen? Show translation

Logo Carson

Service Team

Hallo Michael,

ja: Mit der RA 3Ch Reflex Wheel Pro 4 kannst Du die maximale Geschwindigkeit begrenzen. Nutze dafür am Sender die Dual-Rate-Einstellung für Kanal 2 (TH. D/R) – damit reduzierst Du den Servoweg bzw. die Gasstellung und das Fahrzeug wird langsamer. Viele Grüße!
