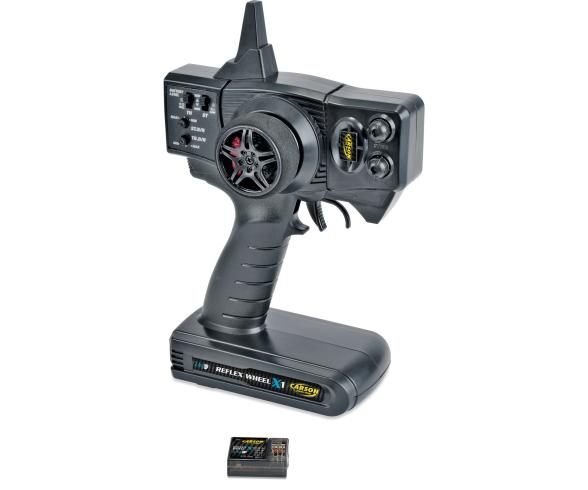

FS Reflex X1, 2.4 GHz radio system, 2-channel

FS Reflex X1, 2.4 GHz radio system, 2-channel

(0)
  • Article number: 500500148
  • Age recommendation: from 14 years

€46.99

Quantity:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Add to wish list
Please wait
Added to wish list
Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

!

This item can only be delivered to the following countries:
All EU countries, United Kingdom, Switzerland, Norway, Iceland, Liechtenstein

Product information
The FS Reflex X1 brings classic wheel-style RC control to cars and kits that need precise 2.4 GHz radio handling. Its 2 fully proportional channels work through a side steering wheel and trigger layout, so steering and throttle inputs can be adjusted smoothly across the full control range instead of switching between fixed positions. At the transmitter, servo reverse is available on both channels to invert steering or throttle direction when a model setup requires it. Separate trim functions for steering and throttle help correct the neutral position, and dual rate for both channels limits servo travel for a more measured response. The transmitter operates on 4.8 to 6 V and includes a charging socket with the positive pole inside. An LED battery display shows the transmitter status at a glance during use. The included 4-channel mini receiver measures 36 x 25 x 15 mm, uses the J/R Uni connector system, and supports receiver power up to 11 V without a BEC. This radio system suits Tamiya kit compatible setups and other RC vehicle builds that need compact receiver dimensions and adjustable control behaviour. A 2-channel 2.4 GHz transmitter, a 4-channel 2.4 GHz receiver and a handbook are included. 4 AA batteries are required separately.

Product details

Features:
1. Two infinitely variable fully proportional channels
2. Servo reverse for both channels (reversal of direction of travel)
3. Trimming function for gas and steering
4. Dual rate for both channels (travel limiting of the servos)
5. Programmable failsafe
6. Tamiya kit compatible


• Operating voltage of the transmitter 4.8 – 6V
• Two infinitely variable fully proportional channels
• Servo reverse for both channels (reversal of direction of travel)
• Trimming function for gas and steering
• Dual rate for both channels (travel limiting of the servos)
• Power supply of the receiver up to 11V (without a BEC)
• Built-in failsafe
• Uni connector system J/R
• Charging socket (positive pole inside)
• Battery status display via LED
• 4-channel mini-receiver 36x25x15 mm

5
0
4
0
3
0
2
0
1
0
Write a review

Damian R.

15.12.2025

Hello,
Hiw can i see on the reflex wheel x1 if the batterie level is low?
Damian Show translation

Logo Carson

Service Team

Hallo Damian, die LED fängt an zu blinken, es ist aber noch genug Restspannung vorhanden.

Viele Grüße! :)

Peter

10.06.2024

Kann der Empfänger BEC? Show translation

Logo Carson

Service Team

Hallo Peter, leider nicht. Dafür kannst Du den Empfänger 500501535 nutzen.

Viele Grüße!

Jürgen

22.04.2024

Wie kann ich mit dieser Fernsteuerung verschiedene RC Cars steuern ? Show translation

Logo Carson

Service Team

Hallo Jürgen, dazu brauchst Du weitere Empfänger, wie bspw. Art.Nr. 500501533.

Viele Grüße!
