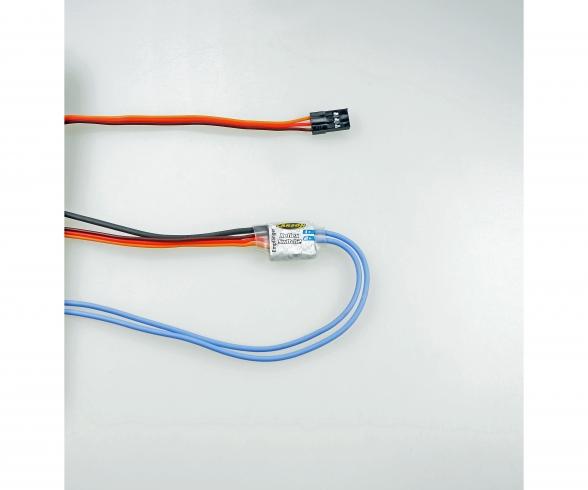

Reflex 6/14Ch Switch 2, switch module, 2 outputs

The Reflex 6/14Ch Switch 2 adds 2 switchable functions to an RC setup through a compact switch module measuring 16 x 14 x 4 mm and weighing about 10 g. Connected directly to the receiver, it responds to a button, switch or joystick and turns a single channel into a practical control point for added electrical loads. The 2-way module evaluates switch position rather than long or short duration, making the switching logic straightforward for installations that need 2 clearly assigned outputs. Each separate NPN output uses a 200 mm blue silicone cable and switches up to 2.5 A, with a maximum switching voltage of 16 V/DC. The module draws its own power through the 300 mm servo cable with UNI connection system, while the 200 mm black negative cable can be connected directly to the battery or a distribution terminal. Input voltage is 4 to 8 V/DC, with 5.0 to 5.5 V/DC supplied from the receiver, and input current is about 18 mA at 5.0 V/DC. In RC trucks, crawlers, work vehicles or scale builds, the module suits added lighting or other electrical functions that need reliable on-off control from the transmitter. At higher loads, the black negative cable is connected to the distribution terminal or drive battery to help protect the receiver during operation.



Warning! Not suitable for children under 14 years.
