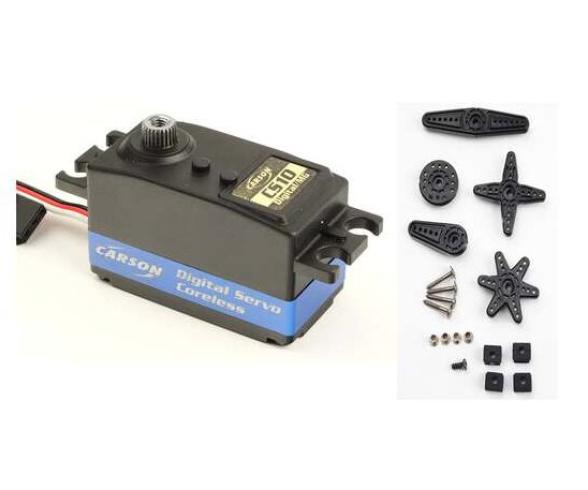

CS-10DS Low-Profile Servo, RC servo, waterproof

The CS-10DS Low-Profile servo brings a flat 25 mm overall height together with quick steering response, making it a strong fit for RC chassis where installation space is tight and steering inputs need to register fast. In touring cars, drift models and buggies, the compact 40.5 x 20.5 x 25 mm format sits neatly into layouts that leave little room for a taller unit. At 6V, the servo delivers 9.53 kg.cm and moves through 60° in 0.09 sec, combining steering force with sharp reaction speed in one compact assembly. A coreless motor drives the action, while the metal gearbox passes that output on through a more direct mechanical path than a basic gear train. The 2 ball bearings support the shaft under repeated steering movement, and the 25-tooth output gearing gives a defined mounting point for compatible servo arms. The housing is waterproof, which broadens the range of running conditions when a model heads onto damp tarmac, dusty car parks or mixed outdoor surfaces. Weight stays at 44.3 g, helping this servo suit builds where component dimensions and mass both matter. A servo horn set is included for installation. The JR connection supports integration into many RC model layouts, making the CS-10DS a focused upgrade for steering systems that need speed, torque and a low-profile form.
