Article number: 500606100

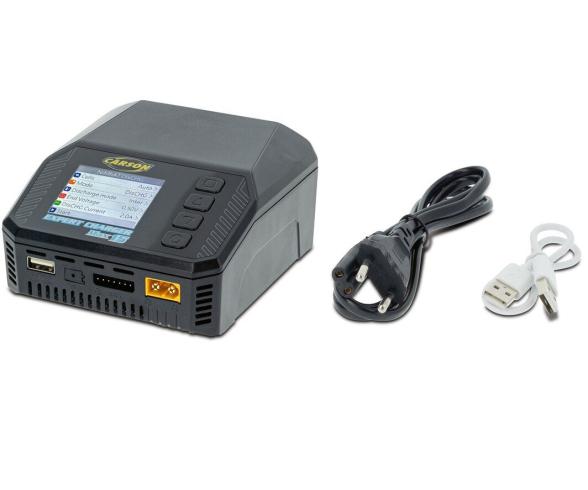

Product: Expert Charger Max 15
Powerful. Versatile. Precise.
This charger delivers up to 15 A charging current at 300 W (DC) and
supports a wide range of battery types – from LiPo to NiMH (1–16 cells).
The integrated 1 A balancer ensures safe and even cell voltage balancing.
With an input voltage range of AC 100–240 V or DC 7–28 V, it’s ready for use worldwide.
The device offers precise measurement functions for PWM, PPM, and SBUS
signals, as well as voltage and internal resistance readings.
An ESC test mode and adjustable power output provide additional functionality.
With compact dimensions of 108×106×60 mm, a weight of only 350 g, and a
crisp 2.0" IPS display (320×240 pixels), this charger is the perfect companion for RC and model-building enthusiasts.
Iincluded: Attention ! Ne convient pas aux enfants de moins de 14 ans.
Détails
Features:
1x Charger
1x AC cable,
1x USB A to USB A upgrade cable
1x Screen saver paper
1x User manual
1. The maximum charging current is 15 A.
2. The balancing current is 1 A.
3. Input voltage: AC 100–240 V or DC 7–28 V.
4. Supports LiPo, LiHV, LiFe, LiIon, and LTO batteries
with 1–6 cells.
Supports NiMH batteries with 1–16 cells and Pb
batteries with 1–10 cells.
5. Charging power: up to 15 A at max. 300 W (DC)
or 100 W (AC).
6. Discharging power in recycle mode: up to 15 A at 300 W.
7. Discharging power in normal mode: up to 3 A at 15 W.
8. Measures PWM, PPM, and SBUS signals.
9. Measures voltage and internal resistance.
10. Supports ESC testing.
11. Provides PWM, PPM, and SBUS outputs.
12. Includes an adjustable power supply.
Product dimensions: 108×106×60mm
Product weight: 350g
Package dimensions: 144×158×63mm
Package weight: 510g
LCD display: 2.0" IPS, 320×240 pixels
