Item No.: 500907710 1:14 Low Loader Control Unit MFC TLS Send IR
This electronic module allows you to control the CARSON gooseneck low
loader with steerable axles using the TAMIYA MFC-03/01. The TLS low
loader control unit (500907712) is optionally required for the trailer.
The tractor unit's lighting can be retrofitted and controlled using
specific rear light circuit boards, such as those for 3-chamber or
6-chamber taillights. These boards are connected via screw terminals.
Each of the 7 outputs can handle a load of up to 500 mA. Additional
lighting, such as marker lights, roof lights, or wind deflector lights,
can also be connected. These are activated via the parking light
function. Transmission to the trailer is via an infrared diode. Power is supplied via the receiver.
The tractor unit's lighting can be retrofitted and controlled using
specific rear light circuit boards, such as those for 3-chamber or 6-chamber taillights. Package contents:

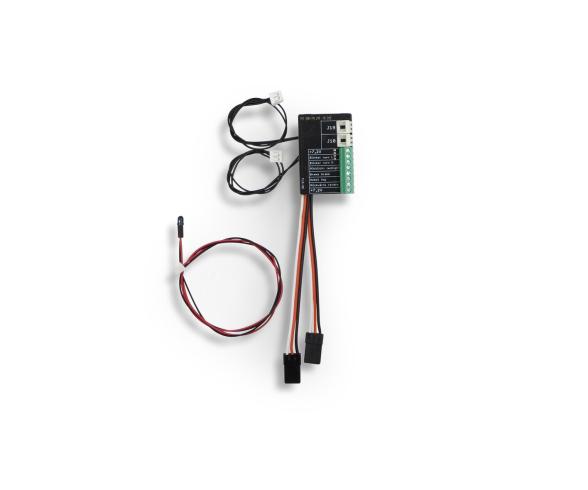

MFC IR transmitter module, IR transmitting diode, 5-pin cable set, instructions.
Infrared transmitter unit for TAMIYA MFC-03/01
with outputs for 6-chamber taillights
Scope of delivery:
MFC IR transmitter module, IR transmitting diode,
5-pin cable set, instructions
Attention ! Ne convient pas aux enfants de moins de 3 ans. Risque d'asphyxie lié à la présence de pièces de petite taille.
Détails
- Transmitter unit for MFC-03/01 for controlling the CARSON TLS low loader control system (500907712)
- Transmission of lighting and auxiliary functions to the trailer via
infrared
- Lighting functions: parking lights, brake lights, left/right turn signals, reversing lights, rotating beacon, work lights
- Controllable auxiliary functions: Motor 1 (e.g., tipping spindle),
Motor 2 (e.g., electric supports or ramp drive), steering (e.g., steerable low loader axles)
- Operating voltage: 5-7.4V/DC
- All necessary cables are included
