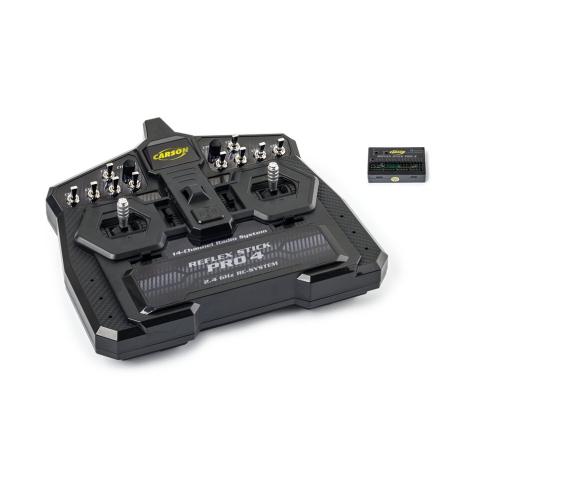

FS 14K Reflex Stick Pro 4, transmitter, 2.4GHz

FS 14K Reflex Stick Pro 4, transmitter, 2.4GHz

(0)
  • Artikelnummer: 500501022
  • Altersempfehlung: ab 14 Jahren

119,99 €

Menge:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Auf den Merkzettel
Bitte warten
Hinzugefügt
Your Browser is not supported or Javascript is disabled.

Lieferzeit 1-3 Werktage innerhalb Deutschlands.

Produktinformation
The FS 14K Reflex Stick Pro 4 brings a 14-channel layout, 2.4GHz transmission and a modern ergonomic RC housing into one control system shaped for complex model functions. Its carbon-look surface and illuminated logo give the transmitter a technical, workshop-ready appearance when powered on. The channel structure is designed for detailed function control. Four channels work continuously and fully proportionally for direct response through the control sticks, while channels 7, 8, 9, 10, 13 and 14 are assigned to 3-position toggle switches. Channels 5, 6, 11 and 12 operate through 3-position push buttons with centre position, creating a clear split between proportional inputs and switched functions. The transmitter runs on 4.8 to 6 V from 4 AA cells, and the receiver power supply allows up to 11 V without BEC. A 15-channel receiver is listed in the included contents. For setup work, channels 1 to 4 feature servo reverse and trim, and channels 1 and 4 add dual rate for servo travel adjustment. This makes the system suitable for models that need tailored steering, throttle or auxiliary function behaviour. 100% compatibility is stated for TAMIYA MFC 01, MFC 02, MFC 03 and DMD units, which suits truck and function-model layouts with multiple switching tasks. 14 Years is stated as the recommended age.

Achtung! Nicht geeignet für Kinder unter 3 Jahren. Erstickungsgefahr durch Kleinteile.


Produktdetails

Features:

• Vier stufenlos regelbare, vollproportionale Kanäle

• Kanal 7,8,9,10,13,14 durch 3-Positionen Kippschalter

• Kanal 5,6,11,12 durch 3-Positionen Taster mit Mittelstellung

• Servo-Reverse (Umkehrung der Laufrichtung Kanal 1-4)

• Trimmfunktion für Kanäle 1-4

• Dual Rate Kanal 1 und 4 (Wegbegrenzung der Servos)

• 100 % kompatibel zu TAMIYA MFC 01/02/03 und DMD-Einheit

• Failsafe-System

• Knüppelaggregate mit feinfühliger Mechanik

• Modernes ergonomisches RC-Gehäuse

• Knüppelaggregate mit feinfühliger Mechanik

• Modernes ergonomisches RC-Gehäuse

• Logo-Beleuchtung beim Einschalten

• Oberfläche im edlen Carbon-Look

Technische Details:

• Betriebsspannung Sender 4,8 - 6 V (4 AA Zellen)

• Stromversorgung des Empfängers (ohne BEC) bis 11 V möglich

• Steckersystem Graupner J/R

Empfohlenes Zubehör:

Empfänger 15 Kanal

Art. Nr. 500501552

Mignonakku-Set (AA)

Art. Nr. 50609092

Servo CS-6 Standardgröße JR/MG/WP/0,2

Art. Nr. 500502041

Reflex 6/14Ch Switch 2 (2x2.5A, max. 16V)

Art. Nr. 500503060

Reflex 6/14Ch Switch 4 (4x2.5A, max. 16V)

Art. Nr. 500503061
